stavoznak BNA-EN25/16/B1-MG-M1.500-V60x2-MRA-ZVSS185/PN25/R48H

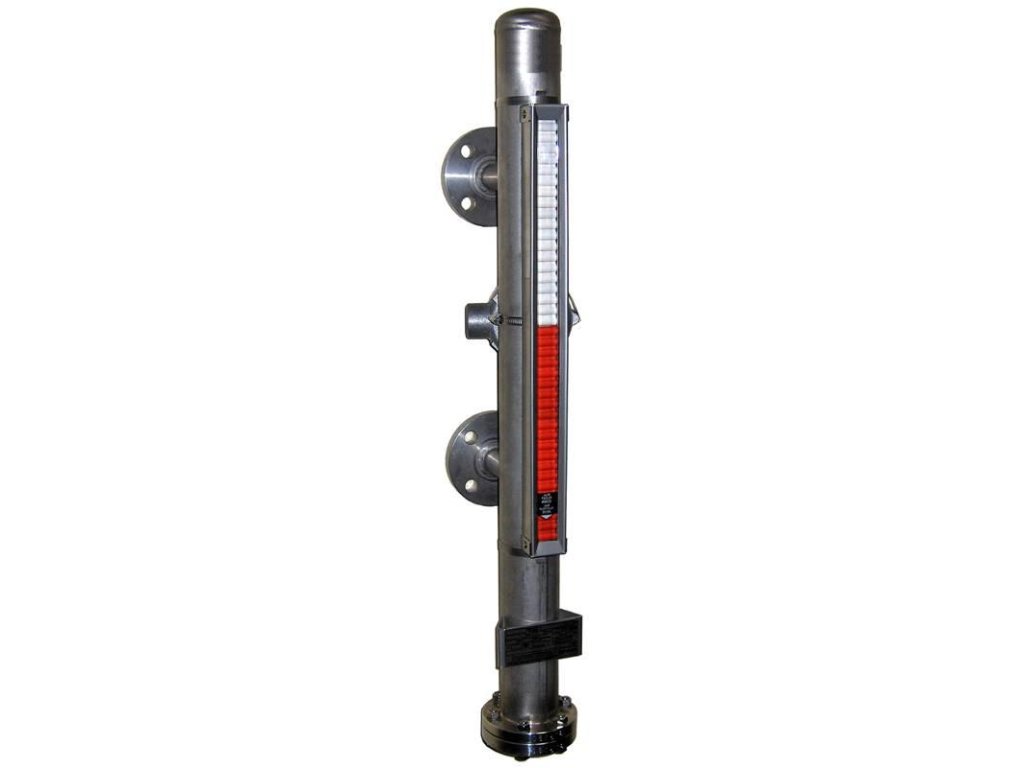

BNA-EN25/16/B1-MG-M1.500-V60x2-MRA-ZVSS185/PN25/R48HMagnetic Level Gauge Type BNA-S0Pressure: 0.5 bar; Temp.: -10°C...150°C; Fluid density: 980 kg/m3Design code: PED 2014/68/EU (AD2000)Test pressure: 3,0 barChamber dimensions: OD 60.3 x 2 mm Stainless steel 316Ti (EN 1.4571)Process connection: Flange EN 1092-1 DN 25 PN 16 Form B1Distance C-to-C: 1500 mmMeasuring range: 1500 mmChamber end top: Pipe capChamber end bottom: Flange KSR size OD 130 mm PN40Vent connection: Vent plug 1/2"BSPDrain connection: Drain plug 1/2"BSPFloat: ZVSS185/PN25/R48HLevel indicator: BMD-SA, aluminium housing with plastic rollersDampening element: Dampening spring, bottom, with coverGasket(s): Flat type, Klingersil C4500Bolting: M series, stainless steel 316 (1.4404 / A4-70)Top stand-off (T): 100 mmBottom stand-off (U): 200 mmSide distance (X): 90 mmNameplate: Aluminium laser printedMG-AUVK10/MT/T32-L1.650/M1.500/14Magnetic Level Transmitter for Magnetic Level Gauge Type BLR-SBThermal protection: 3mm MicrothermMaterial: Stainless steel 316Ti (DIN 1.4571)Housing: Aluminum IP65 M20 x 1.5 mm with cable glandHead mounted transmitter: T32 - 2 wire Ex i HART programmableOutput signal: 4-20 mA superimposed with Hart® protocol communicationHousing location: Bottom mounted angled100% level position (L1): 0 mm0% level position: 0 mmMeasuring range: 1500 mmSensor tube length: 1650 mmContact separation: 10 mmInspection certificate 3.1 per EN 10204Certificate type: Inspection certificate acc. to EN 10204 3.1Certificate Language: English and GermanCertificate for: Magnetic level gauge standardMaterial certificate: Wetted pressure retainparts material (metal contents) with mill certificate incl. chemical analysisInspection certificate 3.1 per EN 10204Certificate type: Inspection certificate acc. to EN 10204 3.1Certificate Language: English and GermanCertificate for: Level transmitter for magnetic level gaugeAccuracy: Listing of measurement values (with 5 test points)
