snímač hladiny magnetostriktivní FLM-TAI-FVEN50/16/B1-VL650/M590/12-V44A-Ex

FLM-TAI-FVEN50/16/B1-VL650/M590/12-V44A-Ex

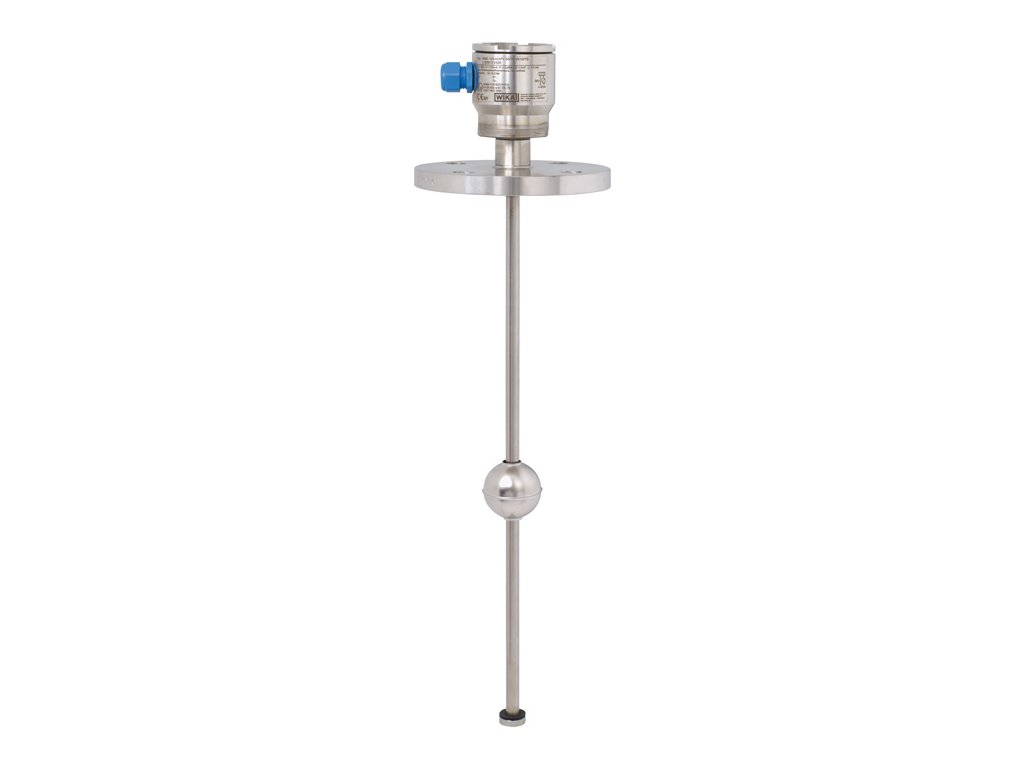

Magnetostrictive Level Transmitter Type FLM-TAI

Approval: ATEX - Ex i - EPL Ga, Ga/Gb, Gb, Db; TÜV 18 ATEX 225120 X II 1G Ex ia IIC T6...T1 Ga; II 1/2G Ex ia IIC T6...T1 Ga/Gb; II 2G Ex ia IIC T6…T1 Gb; II 2 D Ex ia IIIC TX°C Db

Pressure: 14.0 bar
Process temperature: -40°C ... +125°C
Ambient temperature: -40°C ... +85°C
Fluid density: 780 kg/m3

Material: Stainless steel 316Ti (EN 1.4571)
Material housing: Stainless steel IP68

LCD display: Without

Electrical connection: M20 x 1.5 mm with cable gland

Output signal: 4-20 mA - HART Ver. 6
Process connection: Flange DIN EN 1092-1 DN 50 PN 16 Form B1
Float: Stainless steel 316Ti V44A
Float outer diameter: 44 mm
Guide tube: OD 12 mm Insertion length (L): 650 mm
100% level position (L1): 26 mm
0% level position: 616 mm
Measuring range: 590 mm
Tube end: Float collar with PTFE fall protection
Weight: 5.3 kg
