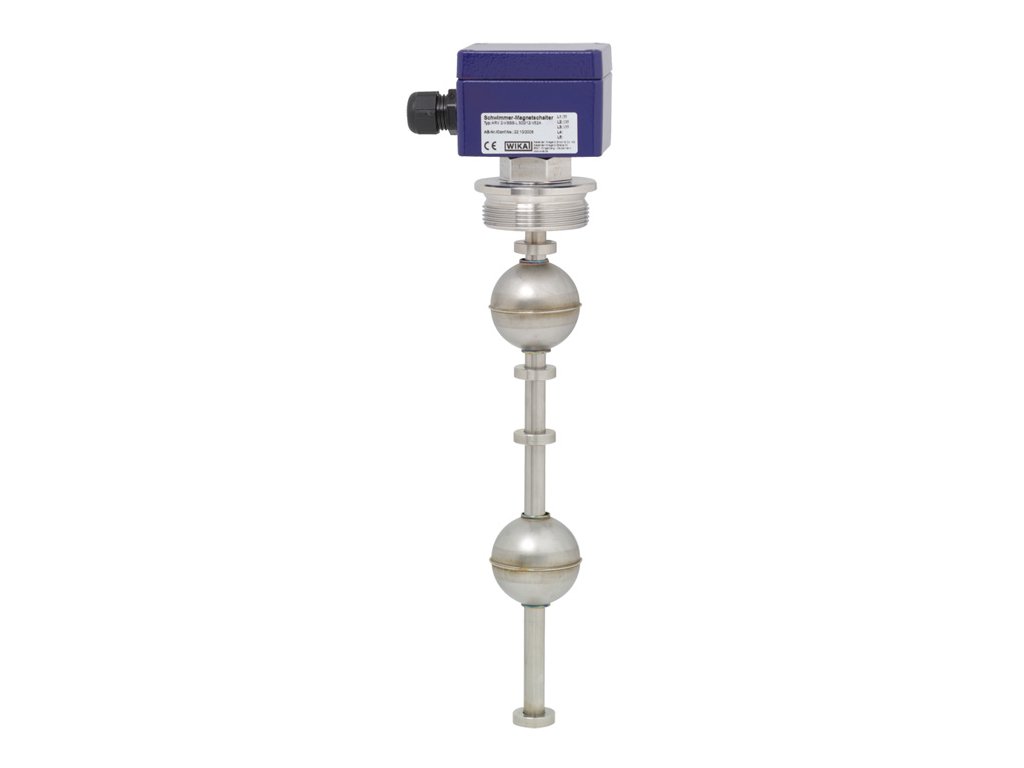

Plovákový spínač hladiny FLS-SA, ARV2" 2 spínače 110a190mm délka 235mm, G2", nerez 1.4571

60-ARV2"-VUU-L235/12-V52A-ExFloat Switch Type FLS-SBIApproval: Ex i; KEMA 01ATEX1053 X II 1/2G Ex ia IIC T6...T1 Ga/Gb - II 2 D Ex ib IIIC T80°C...T230°C DbMaterial: Stainless steel 316Ti (EN 1.4571)Pressure: 40 barTemperature range: -30°C up to 180°CFluid density: 769 kg/m3Housing: AluminiumIngress protection: IP66/68Electrical connection: M16 x 1.5 mm with cable glandProcess connection: Mounting thread downwards 2"BSPSwitch function 1: Change-over (SPDT) 110 mmSwitch function 2: Change-over (SPDT) 190 mmSwitch rating: Ui ? 36 V, Ii ? 100 mA, Pi ? 0,84W, Ci = 0 nF, Li = 0 mHFloat: Stainless steel 316Ti V52A; Float outer diameter: 52 mmNumber of floats: 1 pcGuide tube: OD 12 mm Insertion length (L): 235 mmFloat stop: Float collarWeight: 1,2 kg***Additional ordering information: Prüfdruck liegt bei 50 BarFloat fits through the connection nozzle
